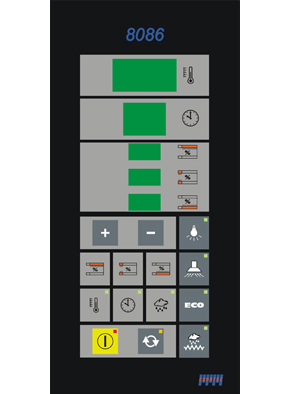

8086

Equipment designed to be used in electrical deck ovens for bakeries and confectioners.

Allows for closed loop control of the temperature in the central area of the oven and open loop for the power applied to the three areas (ceiling, mouth and floor) which generate the heat of the oven, allowing for a dosage from 1 to 100%.

The operator selects power from 0 to 100% which will be applied to the heating elements of the oven and the control, in accordance with the model selected, will operate maintaining the proportions between the three areas to reach the desired temperature.

General Characteristics

  • Regulation of the cooking chamber temperature by means of independent outputs for the ceiling, mouth and floor.
  • LCD display of the seven segments.
  • Independent activation for the initiation of cycle.
  • Activation of the cooking chamber light.
  • Activation of the on-off of the extractor.
  • Control over the generation of steam and its injection for chambers with one or two generators.
  • PID regulation.
  • Control of the internal temperature of the equipment.
  • Intelligent energy saving system with different economizing levels.
  • Timed weekly start-up system, allowing the automatic programmed start-up of the oven each day of the week at a specific time.

Electrical

  • Input signals of temperature for the chamber-ceiling, chamber-floor and steam from K type thermocouples.
  • Output controls with relays 3A/250VAC.
  • Power: 24VAC. +/-20% (50-60Hz.).
  • Consumption: 5VA.
  • Operating temperature between 0 and 60ºC.
  • Relative humidity of operation between 0 and 80% without condensation.
  • EC standards.

Mechanical

  • Apparatus front 115x240mm.
  • Assembly in a 128x250x75mm plastic box. Cut of 107x232mm.
  • Front protection IP54.
  • Polycarbonate front with an integrated tactile keyboard which also incorporates the operating pilot lights.
