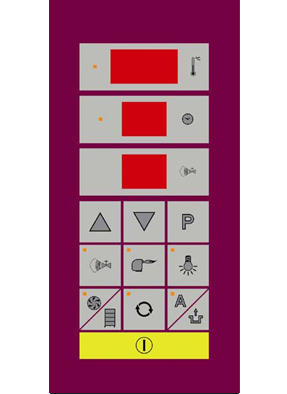

8400

The 8400 controller is configurable by the manufacturer aimed at the control of different types of static or rotary ovens used in baking and confectionary.

General Characteristics

  • Temperature input for thermocouple J.
  • Range of 0 ÷ 400ºC with pilot light for the operating burner.
  • Programmable cooking timer.
  • Timed steam injection when executing the manual steam cooking and injection cycle.
  • Timed / fixed on and off for the oven light.
  • Burner on and off during the cooking cycle.
  • Activation of the turbine with the oven in operation.
  • On and off of the gas extractor.
  • Display for anomalies and ends of stroke.
  • Depending on the set-up:
  • Timed operation of hatches.
  • On and off of direct outlets.
  • Activation of outlets for rotating two trolleys.
  • RS485 communication for connecting to SW6000.
  • Plastic box with frame for panel mounting.

Electric

  • Power supply 24 Vac +/- 20%. (50-60 Hz)
  • Electric consumption: 5VA.
  • Maximum load for outputs mA with 500 ohm.
  • Maximum consumption for outputs 0/2-10 v with 10 mA.
  • Potential-free relay outputs with cut-off capacity 5A/230Vac in a resistive load.
  • Protection against sensor break.

Mechanical

  • Format 250x125 mm.
  • Depth 80 mm. including the rear plastic cover.
  • Front protection IP65.
  • Rear protection IP20.
  • Operation between 0 and 60ºC and between 0 and 80% of RH.
  • Storage conditions between 10 and 60ºC.
