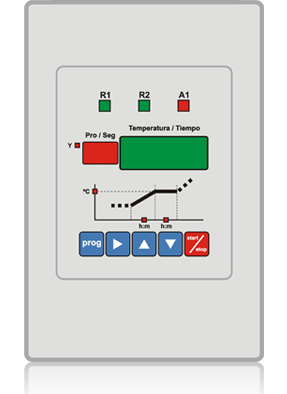

HC 450

HC450 - Sectores y equipos específicos - Cerámica y FusingProgram regultaror

Designed to be used in electric, gas and diesel ovens which require processes with different temperature levels.

General Characteristics

  • Box or panel assembly.
  • Capacity to store up to 30 programs, each made up by an optional waiting time and a maximum of 30 segments. Each segment has a ramp and a plateau to maintain the temperature.
  • A control output by relay or 4- 20mA.
  • Two alarm outputs by configurable relays.
  • Incorporation of high temperature security module with an independent output.
  • Possibility to block user access to security temperature.
  • Permanent display of the temperature reading, the segment being performed, the state of the output control and the two alarms.
  • Dynamic graph of the program execution.
  • Possibility to program the gradients in ºC/h or by temperature and time.
  • PID regulation or ON/OFF with adjustable hysteresis.
  • Indication of broken thermocouple.
  • Indication of power failure.
  • Indication of inverted thermocouple.
  • Configurable for K, S and R thermocouples.
  • Input of external signal to force the segment to pass.

Electrical

  • Power: 230VAC. +/-20% (50+60Hz.).
  • Consumption: 2.8VA.
  • Alarm and control outputs by means of power free relays.
  • Recommended operating temperature between 0 and 60ºC.
  • Relative humidity of operation between 0 and 80% without condensation.
  • EC standards.

Mechanical

  • Vertical format.
  • Dimensions 139.07x209.55x50mm.
  • Front protection once mounted IP54.
